Load
The two enclosed modules and terrace components are planned as one 40HQ shipment.
Concept setting · 0202 · ONE-CONTAINER TERRACE FORMAT

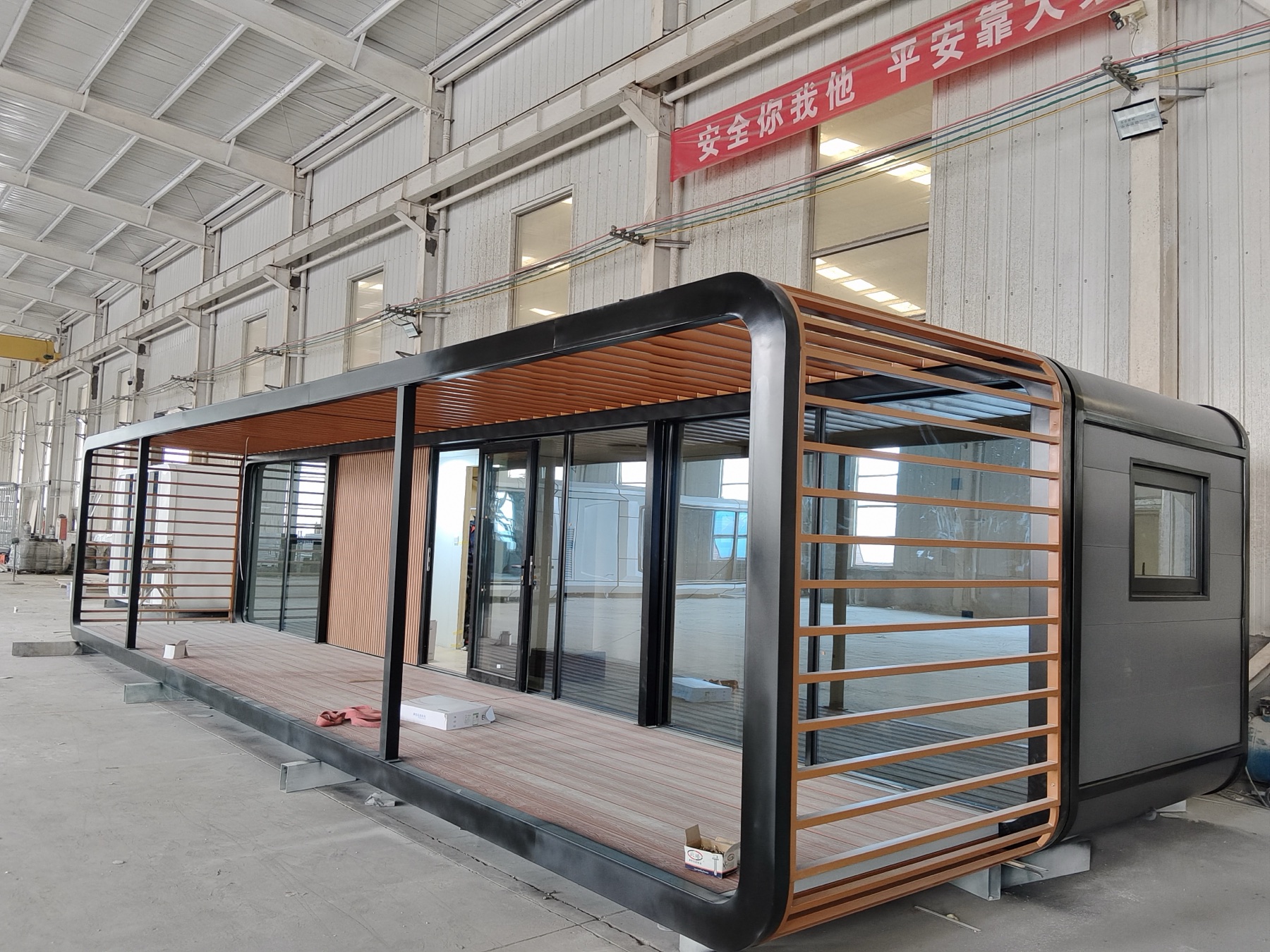

Split Modular Cabin with Deck
Two room modules with flat-packed terrace
A two-guest modular cabin with a deck for glamping and holiday park projects. Two enclosed room modules and flat-packed terrace components form the reference delivery format.
Completed size5.8 × 6.75 × 2.45 m
Designed for2 guests
ProductionApprox. 30 working days
Shipping1 set / 1 × 40HQ
PRODUCT GALLERY
Form, finish and interior.
Concept images illustrate possible installed environments and are not completed-project photography. Final details are confirmed in the quotation, specification and contract. Photos show reference finishes and furnishings, not a guaranteed inclusion list. Use the specification below to discuss what is included.
REFERENCE SPECIFICATION
Known details, clearly stated.
These are the current public reference details. Dimensions, weight and inclusions remain subject to the confirmed order documents.
Dimensions and layout
The completed reference dimensions include the deck and are not the enclosed room size or usable interior area. Two room modules and a flat-packed deck require local assembly. Ask Ethan for the layout and foundation drawings; room arrangement, module dimensions and connection details are confirmed per order.
Discuss the layout for your site ↓- Delivery form
- 2 room modules + flat-packed terrace
- Internal floor area
- To be confirmed in final drawing
- Terrace packing
- Loaded inside the two main modules
- Local preparation
- Foundation, crane, module connection and terrace assembly
- Project drawings
- Foundation and layout drawings available
- Material document
- Asbestos-free documentation available for order review
Standard reference

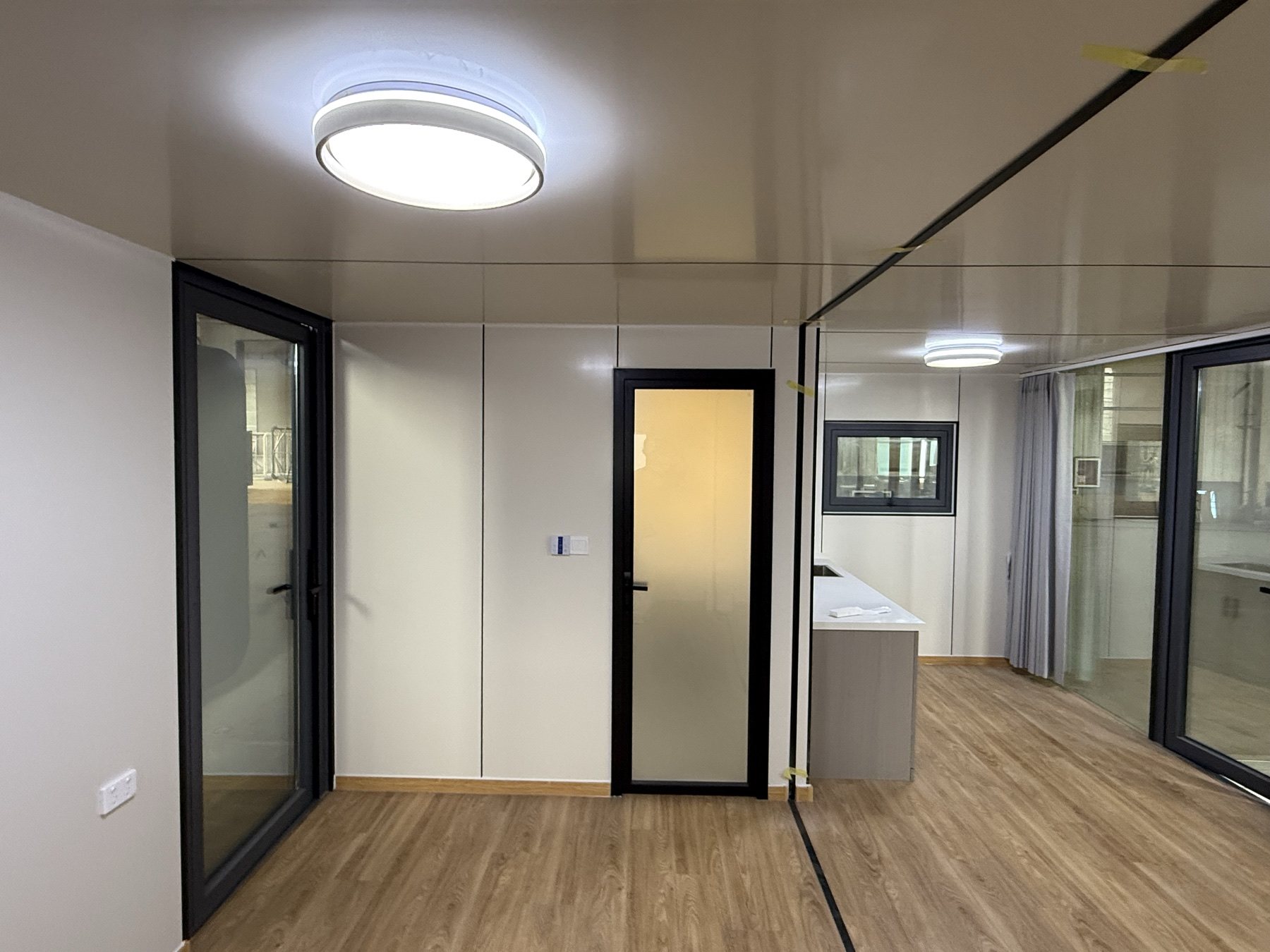

- Kitchen cabinets, sink, quartz worktop, under-counter fridge space and range hood
- Thickened sliding bathroom partition, toilet, shower and washbasin
- Waterproof bathroom base, anti-slip shower tiles and towel rail
- Electric curtains
Optional / project-specific
- Air conditioning
- Furniture package
- Smart-home functions
- Project-specific finishes and colours
Air conditioning, furniture packages and smart controls are optional. The kitchen reference includes a fridge space, not a supplied fridge. Interior panel material and thickness, electrical scope and final inclusions are confirmed in the order specification.

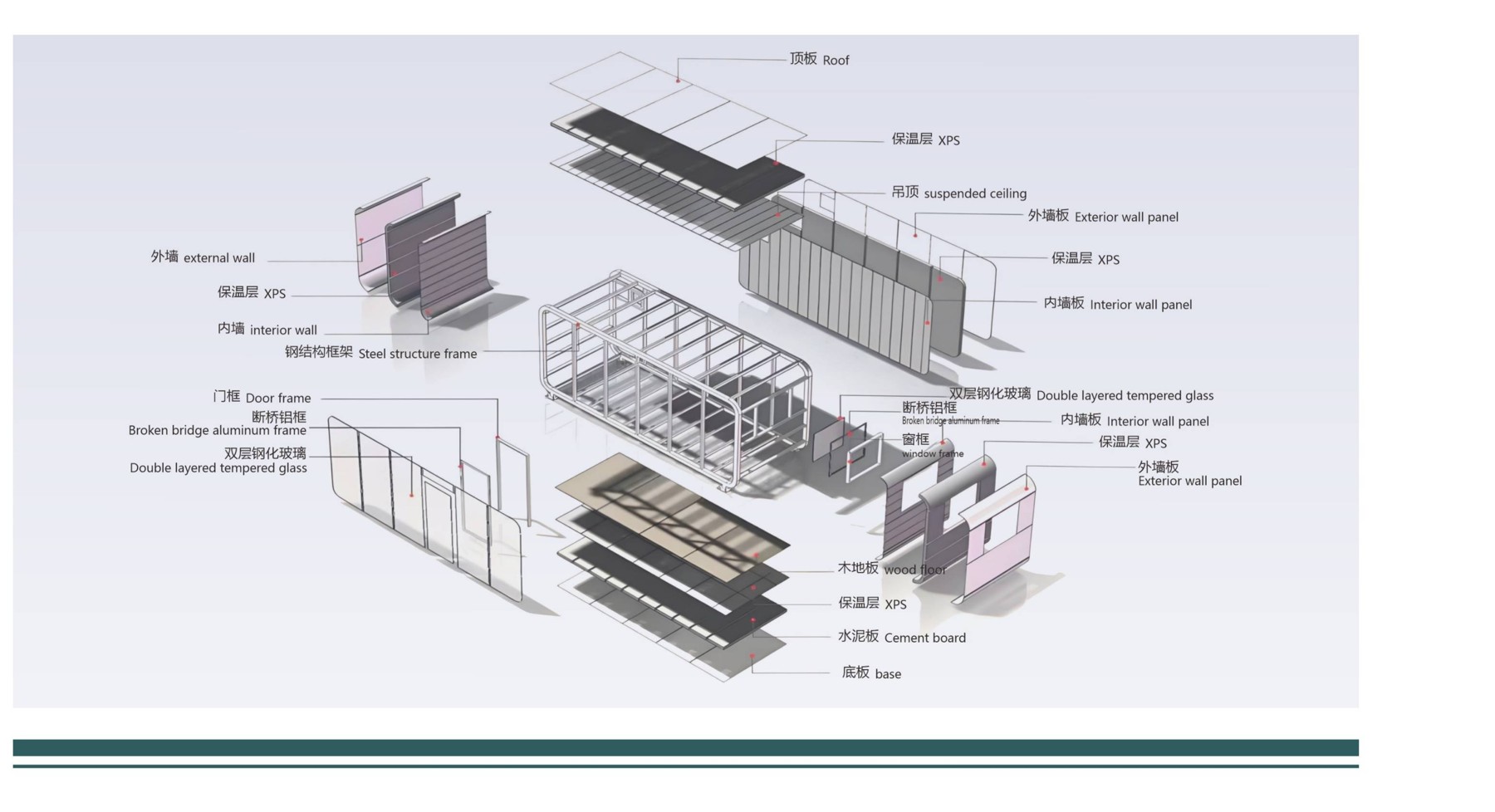

STRUCTURE & MATERIALS
A typical build-up, confirmed for each order.
This construction reference comes from an approved manufacturing partner. The steel section, insulation, panels, glazing and floor build-up are confirmed in the signed specification for each product.
DELIVERY LOGIC
Plan the arrival before production.
SUITABLE FOR
Coastal accommodation · Holiday parks · Resort rooms · Private retreat
The reference plan loads the terrace components inside the two room modules, with one set in one 40HQ container. Final packing and connection details are confirmed per order. Buyers arrange local approvals, foundations, crane placement, module connection, deck assembly and utilities.
Who arranges what?
Ethan coordinates sourcing, factory follow-up, production checks and export preparation in China. Buyers arrange destination approvals, customs clearance, port collection, inland transport, foundations, lifting and local installation, including licensed utility connections. Shipping scope and each party’s responsibilities are agreed in the quotation and contract.
For Australian projects, confirm the electrical approach and required documents with local qualified professionals before ordering. Product or material documents do not establish whole-cabin approval for your site.
Position
Both room modules require crane placement onto the prepared foundation.
Assemble
Local installers connect the modules and build the terrace to the confirmed instructions.

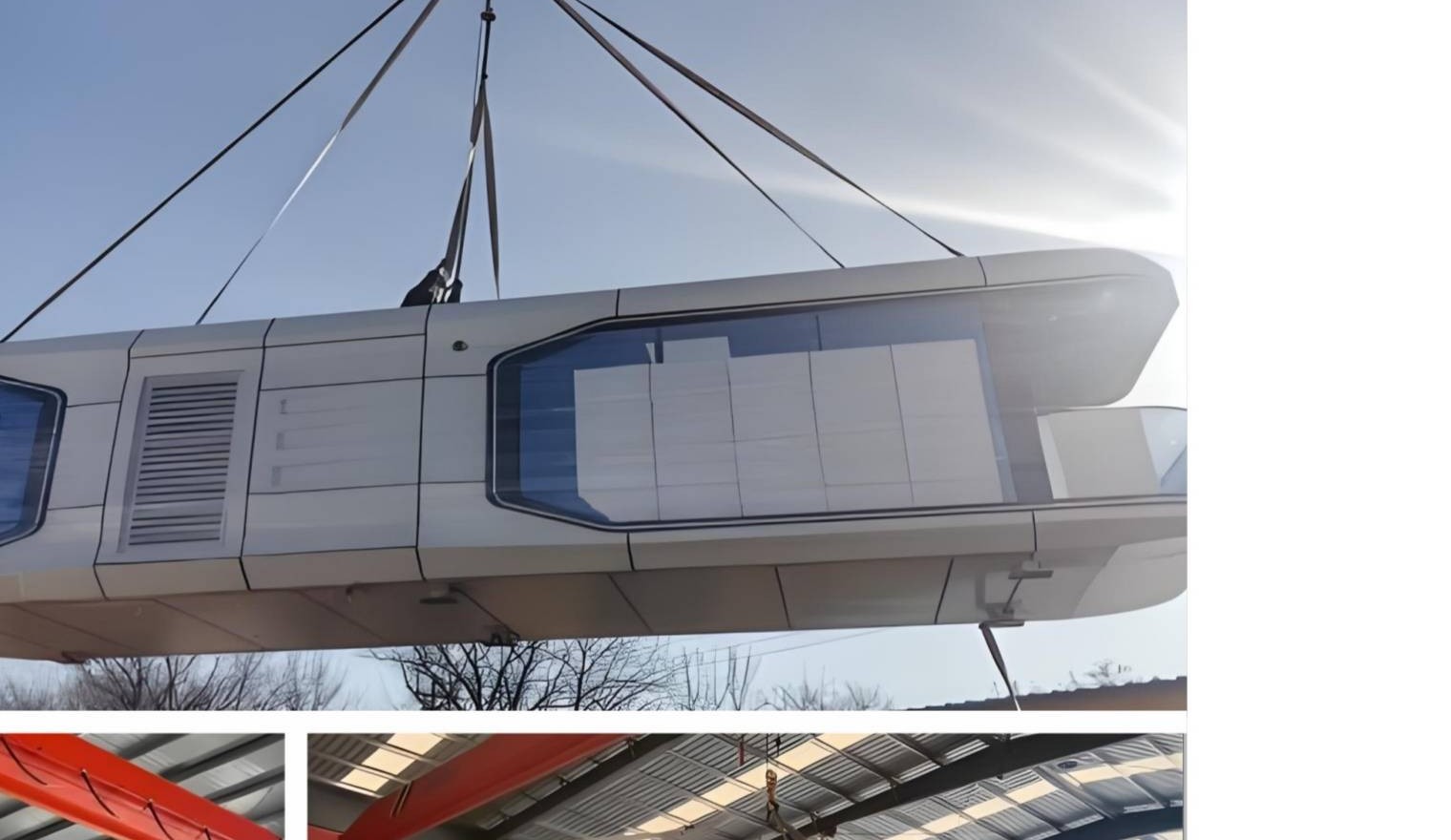

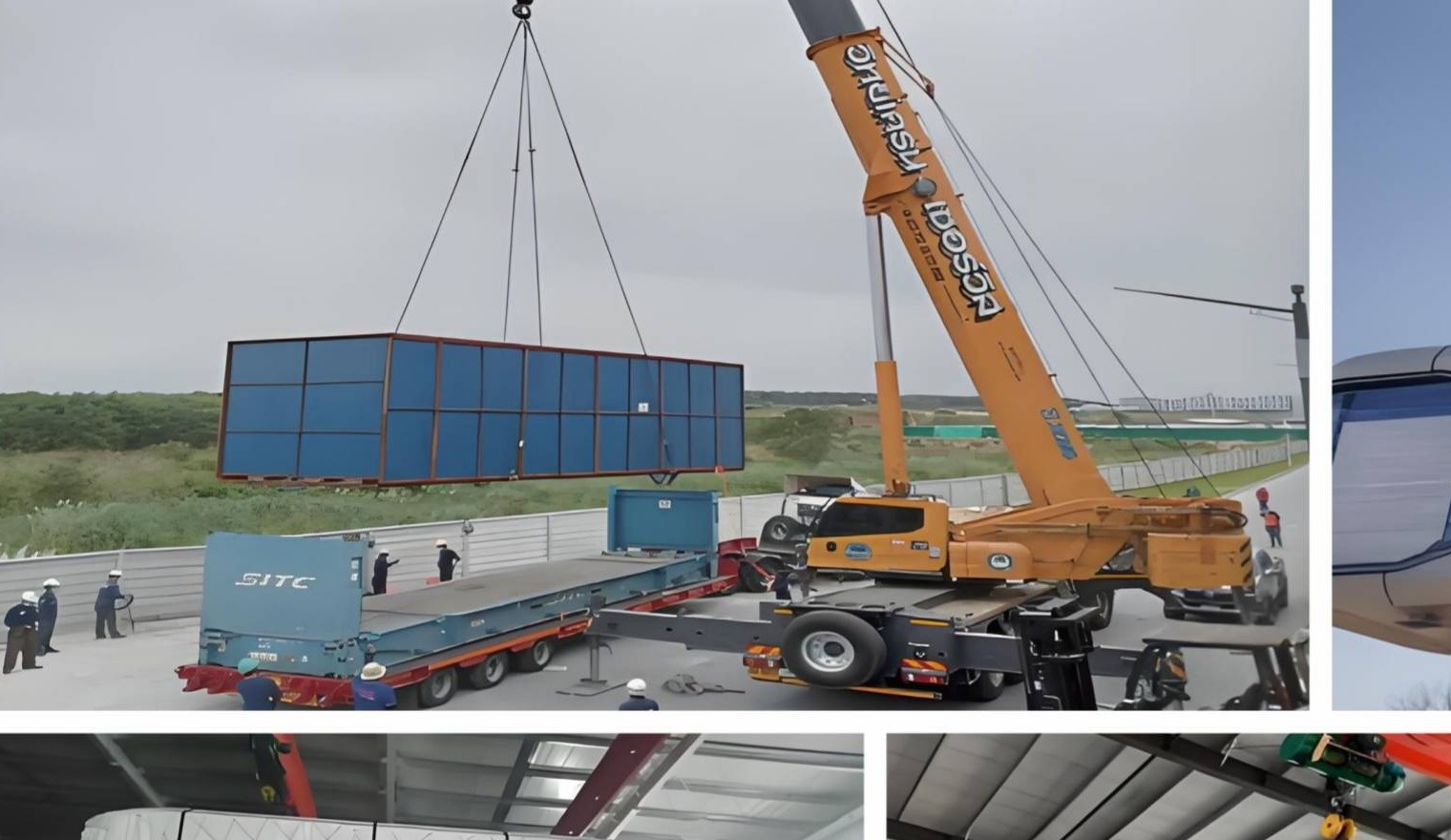

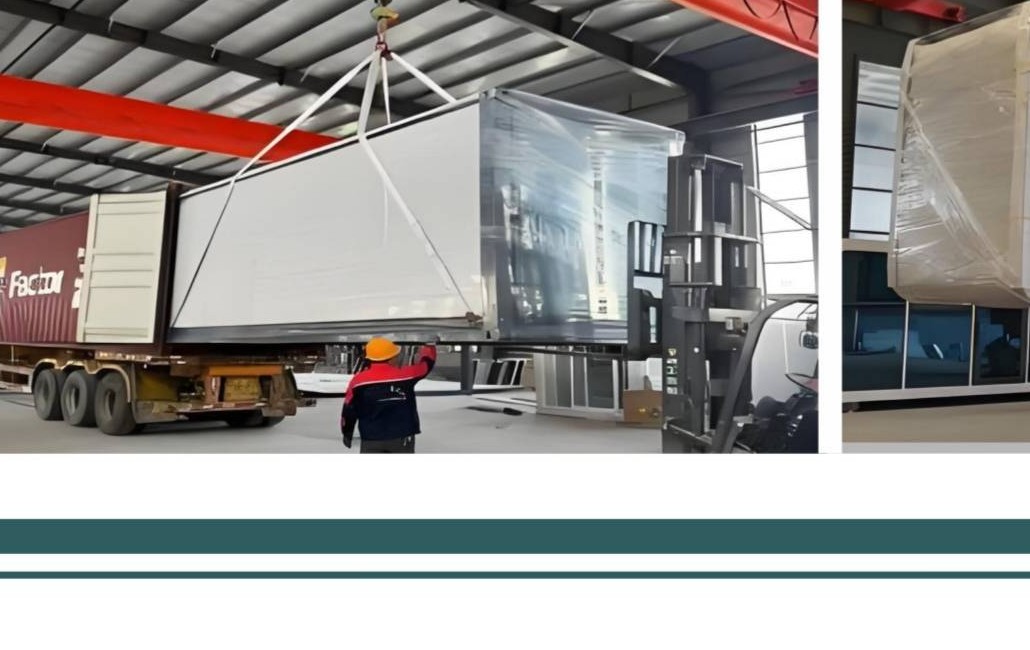

HANDLING REFERENCE
From factory floor to final position.
These approved partner references show typical lifting and loading operations. The final lift plan, equipment capacity and local access must be reviewed for the confirmed unit and destination.
DISCUSS THIS FORMAT
Start with your site and intended use.
Tell Ethan your destination country and state or region, intended use, preferred cabin format, quantity and target timing. Australian buyers should also describe their arrangements for importing and local installation.
